Industrial Dampers
AMD Co. supplies multiple products incorporating dampers or dampers as individual units. We offer the following products: Mine Door with Dampers, Damper Door, Industrial Dampers (single unit dampers).
Mine Door with Dampers:
- Dampers are installed into our traditional ventilation mine doors, so these doors can be operated like a traditional ventilation mine door (high cycles, high pressure, power actuation and automation).
- See “Mine Doors with Dampers” (link to mine door with dampers page).

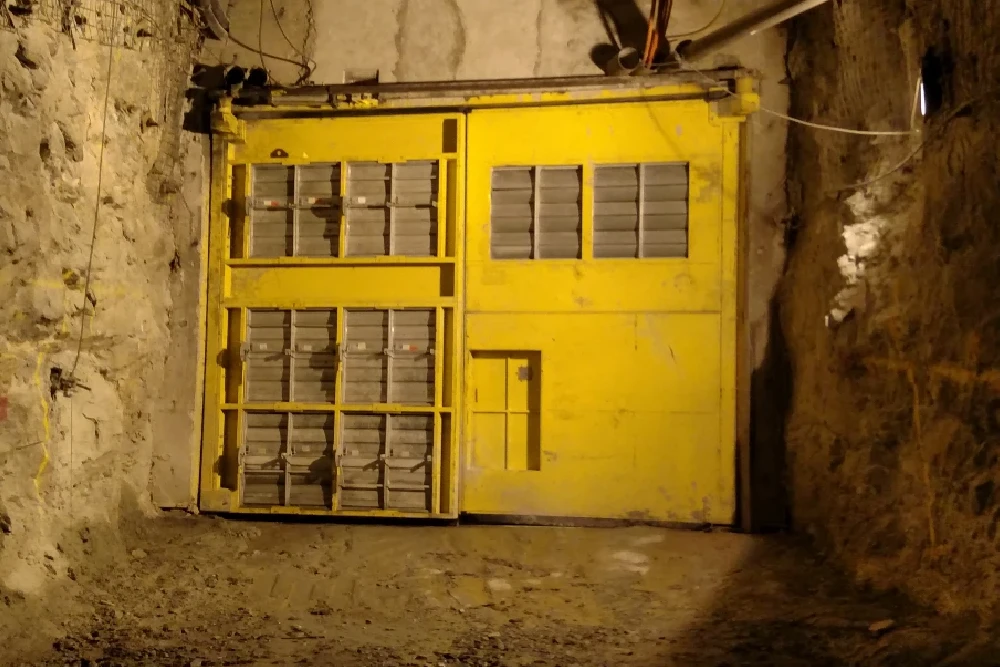

Damper Door
- AMD Damper Doors are available in almost any size and can be configured in a single wing or dual wing design. Damper doors can be opened manually and will allow access where drop board regulators cannot.
- See “Damper Doors” here (link to damper door page already completed).

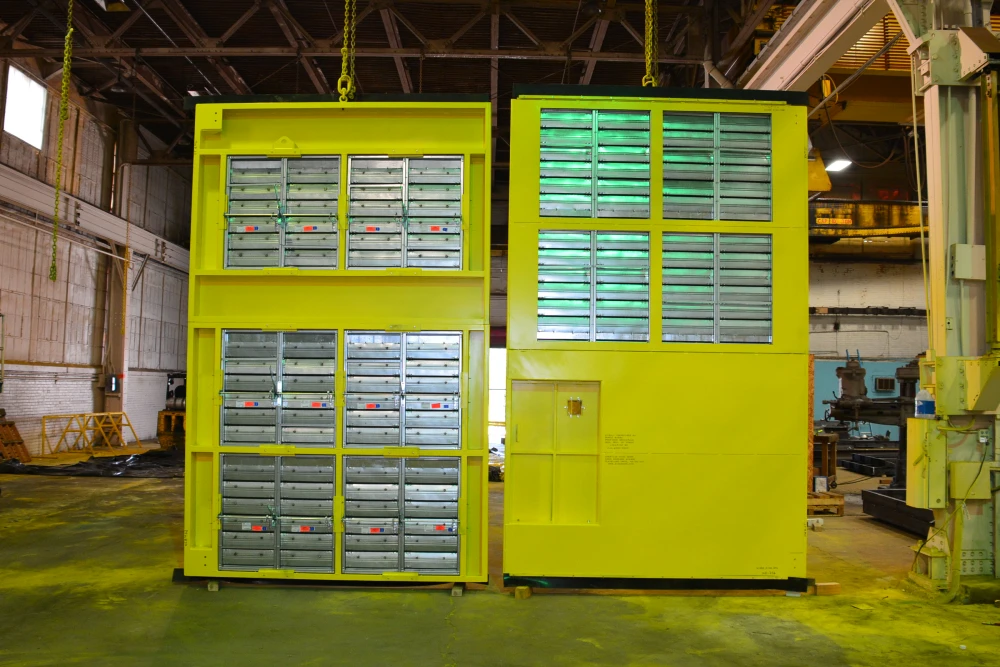

Industrial Dampers (single unit dampers)

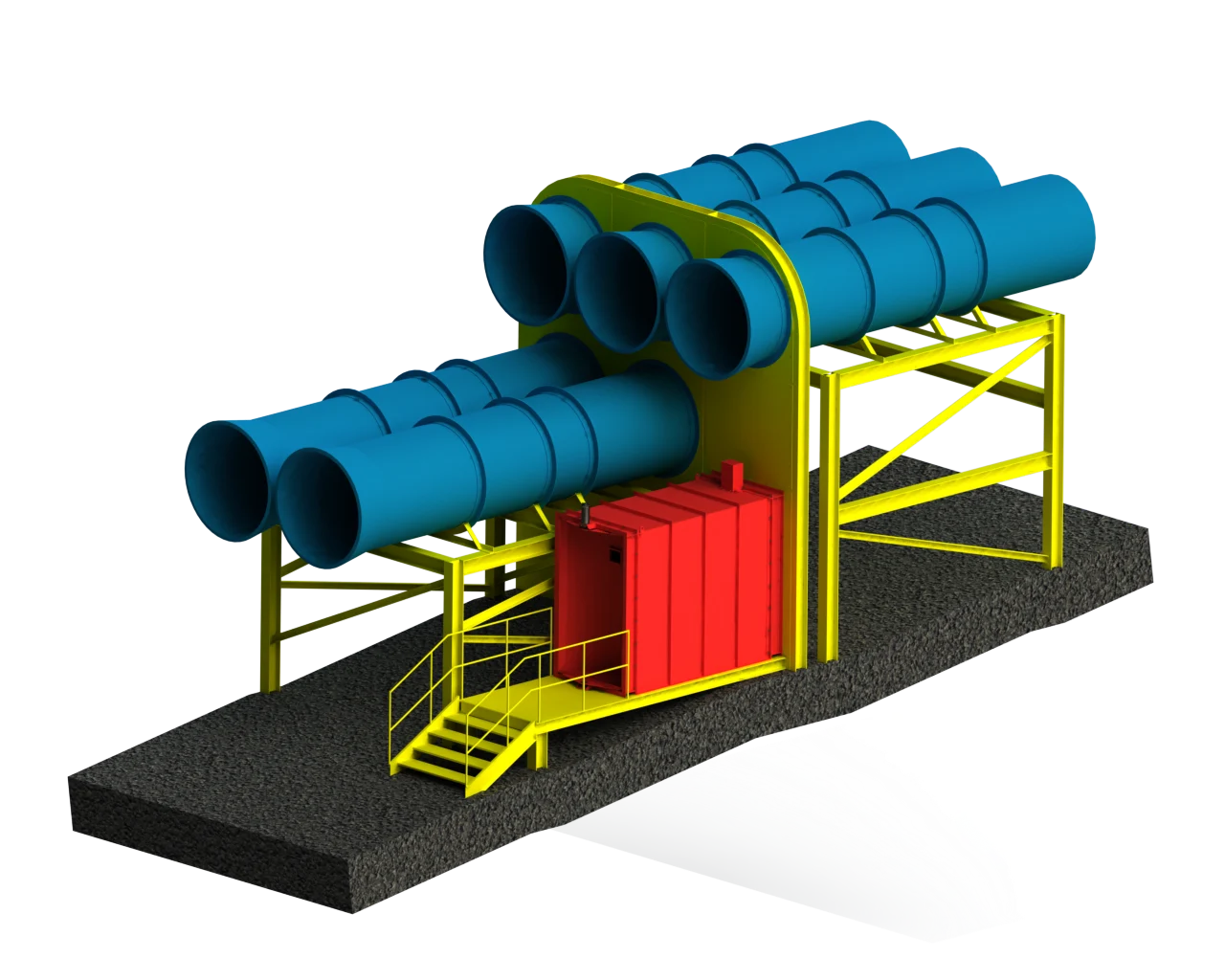

Industrial dampers can be used for many different applications: damper walls, intake and exhaust fan dampers (at the raise), tunneling dampers etc..
- Offered in almost any size or configuration.
- Opposing blade or parallel blade designs.
- Manual or automatic.
Damper Actuation Options
- Manual.
- Automated:
- Choice of smart actuators from Triac or Auma.
- No complex PLC control systems required.
- NEMA4X enclosures.
- Declutchable handwheel for manual operation. Modbus/TCP main control, and semi-integral digital control communications protocol (local/remote control with feedback and digital LCD display) .
- Damper to fall in place on loss of power.

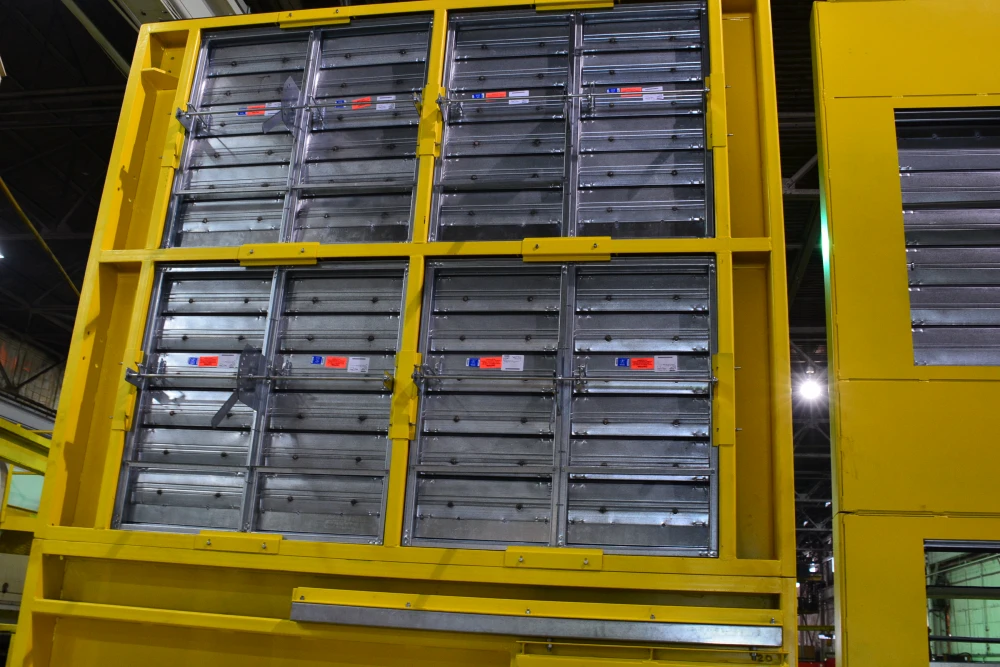

Typical Damper Design (dependent upon size, flow and pressure):
- Rigid ¼” thick carbon steel frame.
- 304 stainless steel axles, full length.
- Relubricating ball bearings with fabricated carbon steel double gland stuffing boxes.
- Heavy duty 304 stainless steel linkage arms and bar with stainless steel pins and OIB bearings with expanded aluminum linkage guard painted OSHA safety yellow.
- Silicone “P” seals on blade edges w/ 16-gauge galvanized steel hold down strips and stainless-steel compression at jambs.
- 1/2” x 0.041” galvanized wire screen in aluminum, vee frame mounted on one or both sides of the damper.
- Finish -Choice of galvanized or surface prep and blast per SSPC-SP10. One coat of primer and one coat of industrial enamel. Or SW Zinc Clad IV epoxy primer with one coat SW Macropoxy HS epoxy finish.
Track Cleaners

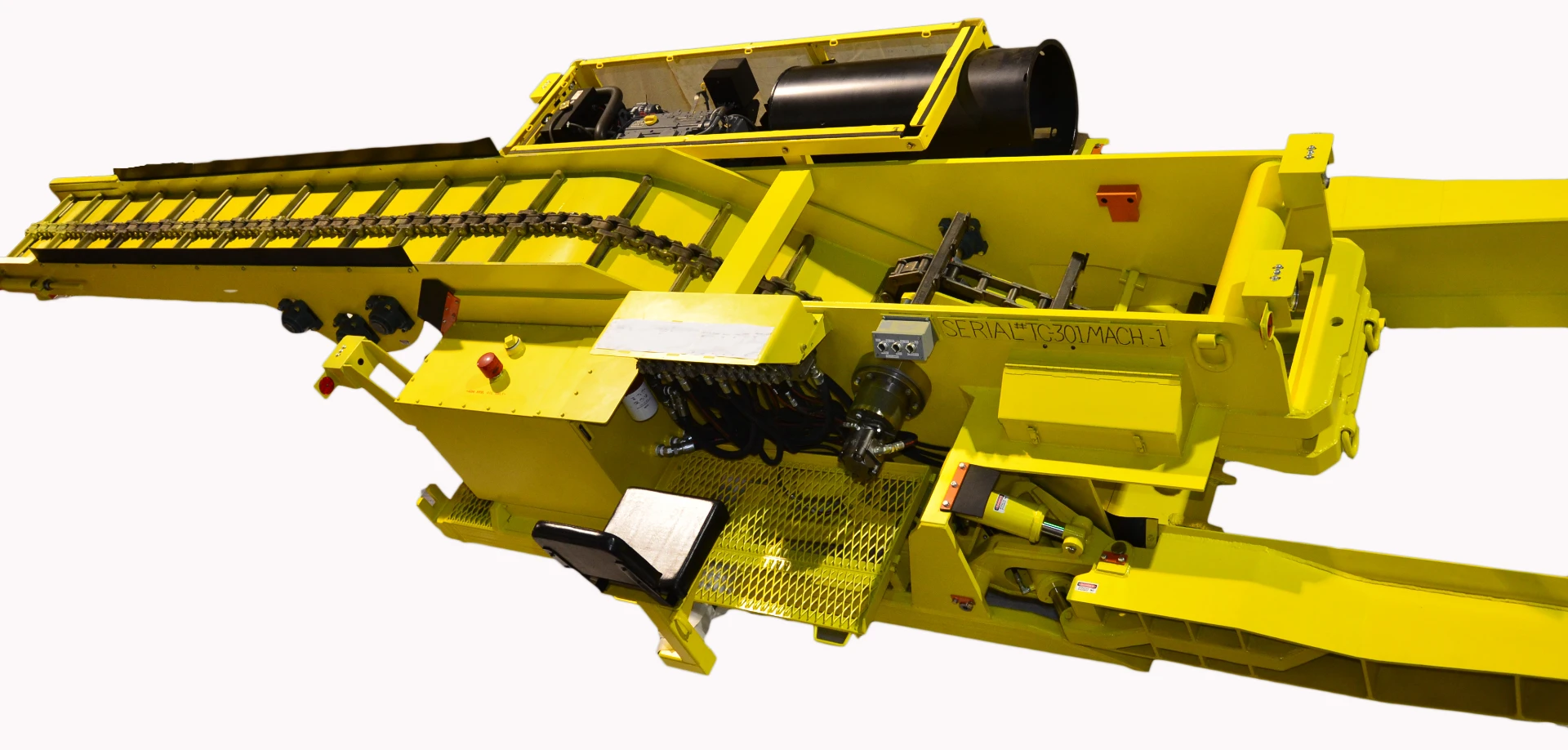

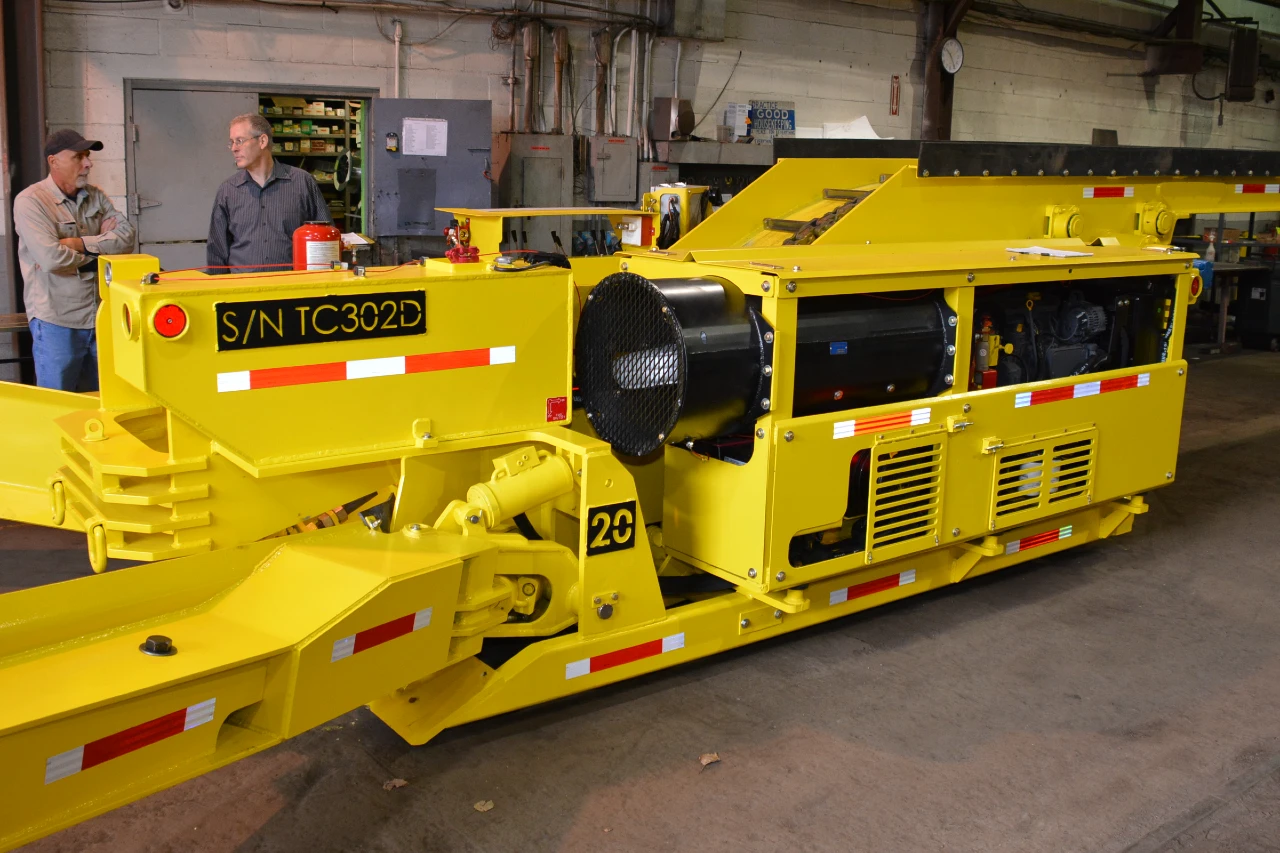

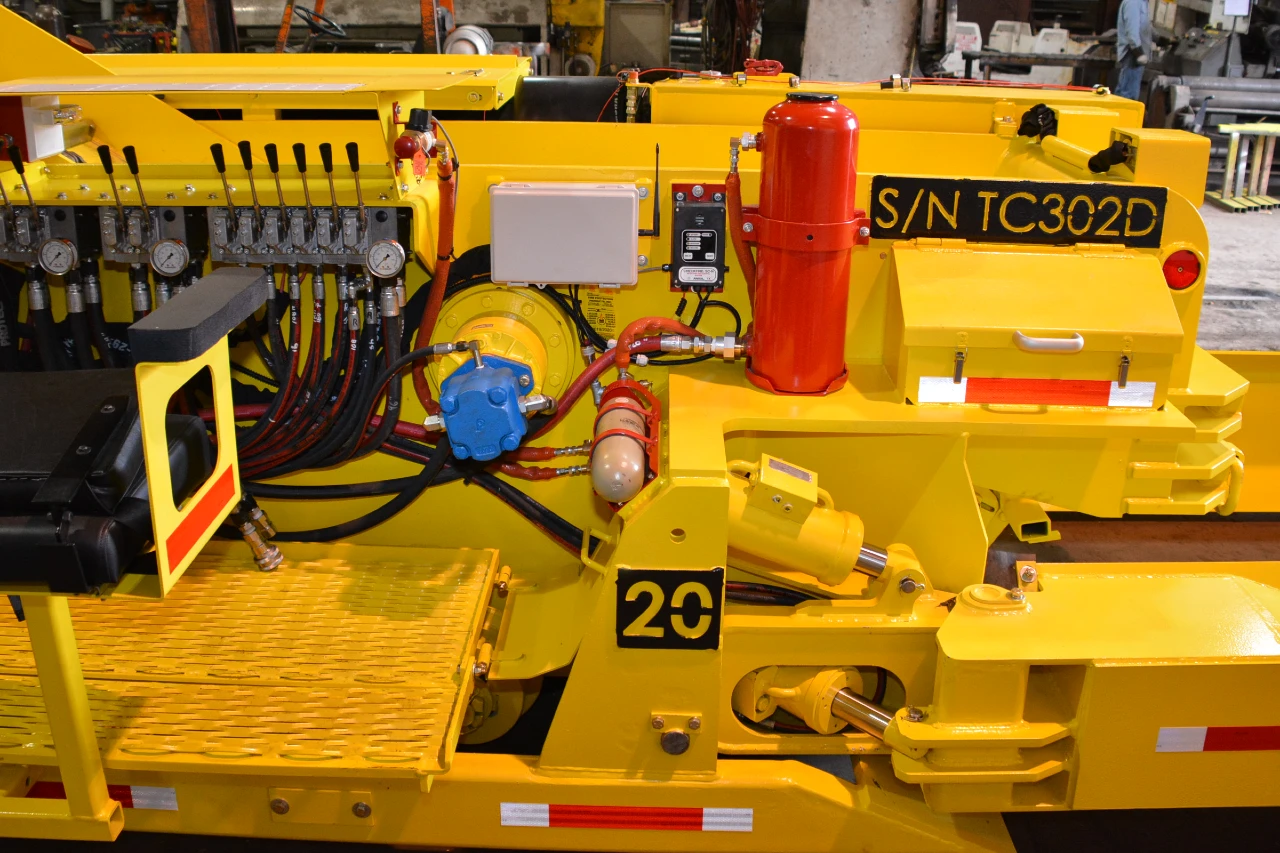

At AMDr® our Model 75 is a rugged, heavy-duty Track Cleaner ready to remove iron, copper, coal, potash, and salt from your tracked mine. (This design was formerly called the Canton Track Cleaner.)

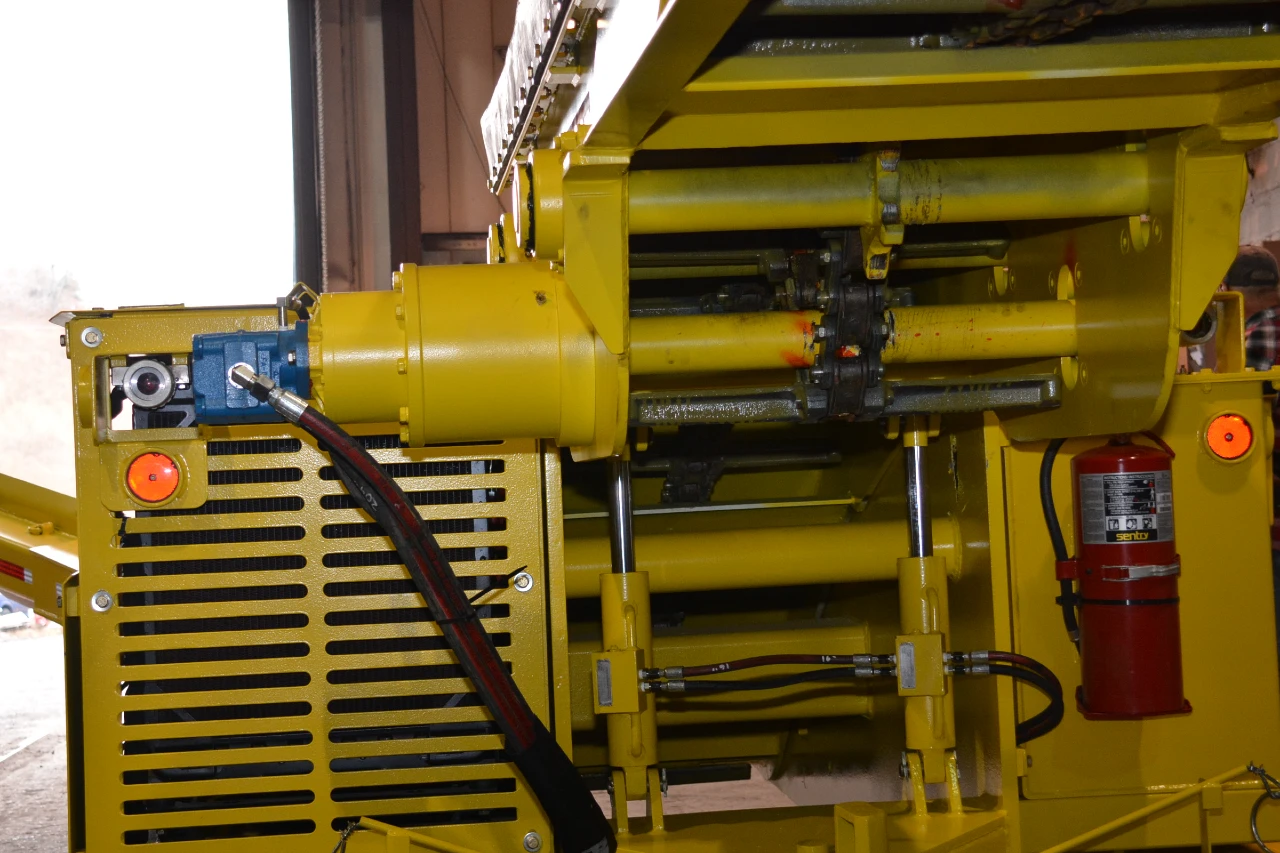

Designed to serve in a variety of underground mining environments, our Model 75 Track Cleaner operates while hitched to a locomotive. It cleans your mine track using two steps:
- Using the Forward Plows, the track cleaner scoops excess debris from the outside of the railway. Once set to the best position, the plows funnel the debris into the center area between the tracks.
- Between the rails is a Digger Plate traveling 1″ above the railroad ties when in digger position. The digger plate strips through any debris which has compacted along the tracks. Loosened material is funneled up the digger plate onto a gathering conveyor chain. The gathering chain conveys debris onto a boom conveyor and then into a receiving rail car being pulled by the Track Cleaner (coupled together).
Specifications on the AMD Model 75 Track Cleaner
Our Model 75 Track Cleaners (formerly the Canton Track Cleaner) have a clean spillage rate exceeding 1 TON per minute, clearing the roadbed for a distance of 6′ 6″ from the centerline on each side of the track and leveling the roadbed a total of 13′ 0″ out to out with plow extensions. A medium size locomotive tows the cleaner, one or more empties, and the change motor.
- Standard Frame Height 46″.
- Optional REMOTE CONTROL operation.
- Caging Length 13′.
- Caging Width 6′ 6″.
- Track Gauges 30″ to 48″.
- Horsepower and Starter Horsepower 50.
- Maximum Cleaning Width, Standard 10′ 0″.
- Maximum Cleaning Width with Plow Extensions 13′ 0″.
- Conveyor Drives Hydraulic.
- Approximate Weight 18,000 lbs.
- Voltages DC, AC, Battery, Diesel.
- Motor-Full Duty Load 1 hour.
- Pump-Hydraulic-3 stage-GPM 50.
- Speed – Boom Conveyor 183 FPM.
- Speed – Gathering Conveyor 211 FPM.
- Minimum Height 38″.
- Motor RPM 1,750.
- Reducers – Two Planetary reducers for independent drives.
- Side Plates 1″.
- Digger Plate – Abrasion Resistant 1″.
- Boom Skip Sheet – Abrasion Resistant 1/4.
- Boom Chain – Ave. Ultimate Strength 91,000 lbs.
- Conveyor Chain – Ave. Ultimate Strength 90,000 lbs.
- Dual Control Standard0
- Conveyors-Forward/Reverse Independent Drive.
- Independently driven, reversible conveyors permit quick clearing of stalled conveyors.
- Our Model 75 Track Cleaner has proven its worth in underground mines around the world. Email us today at info@minedoor.com , or call to speak to one of our experienced mining engineers at 216-432-3240.
Cable Vulcanizer

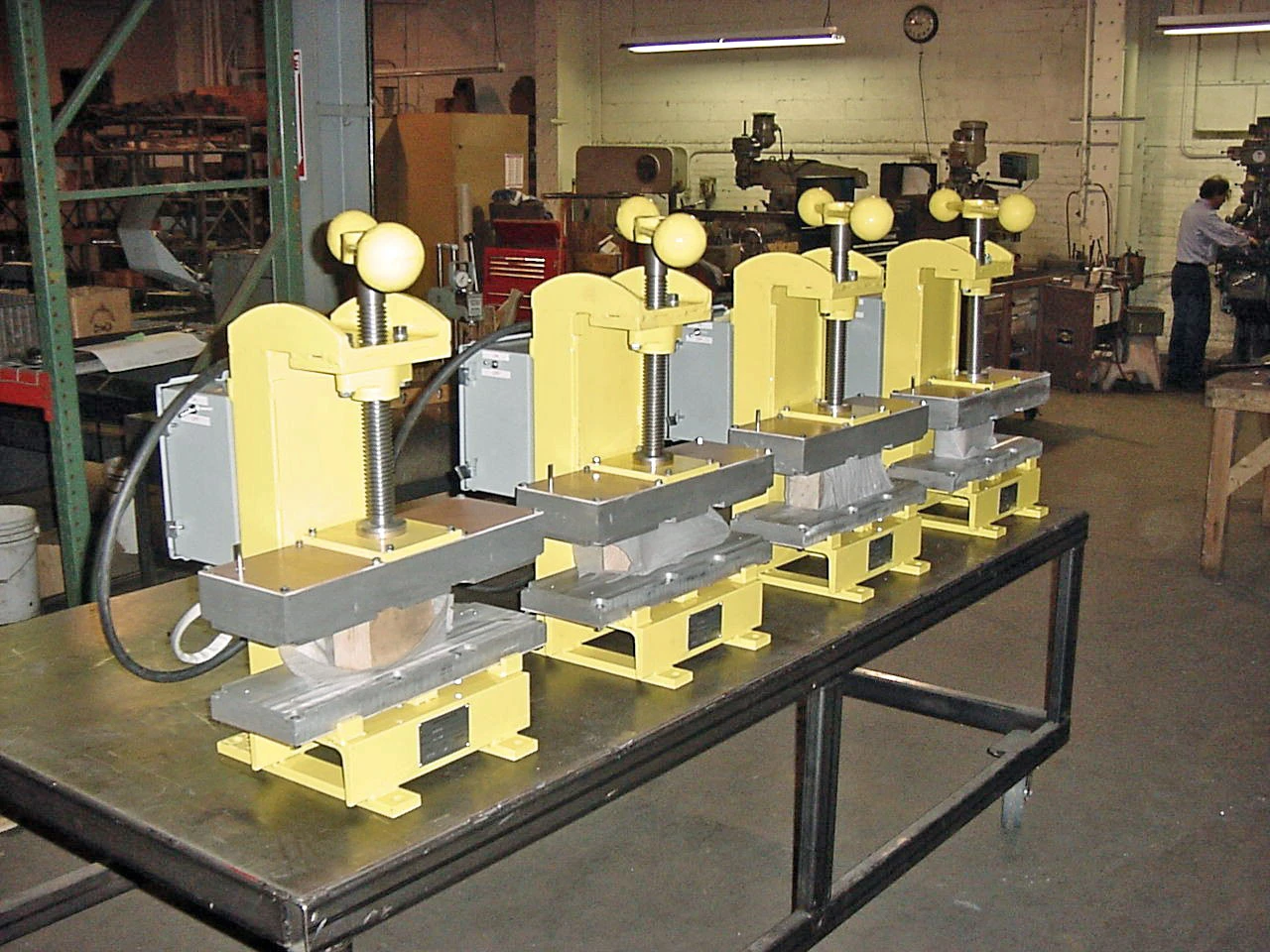

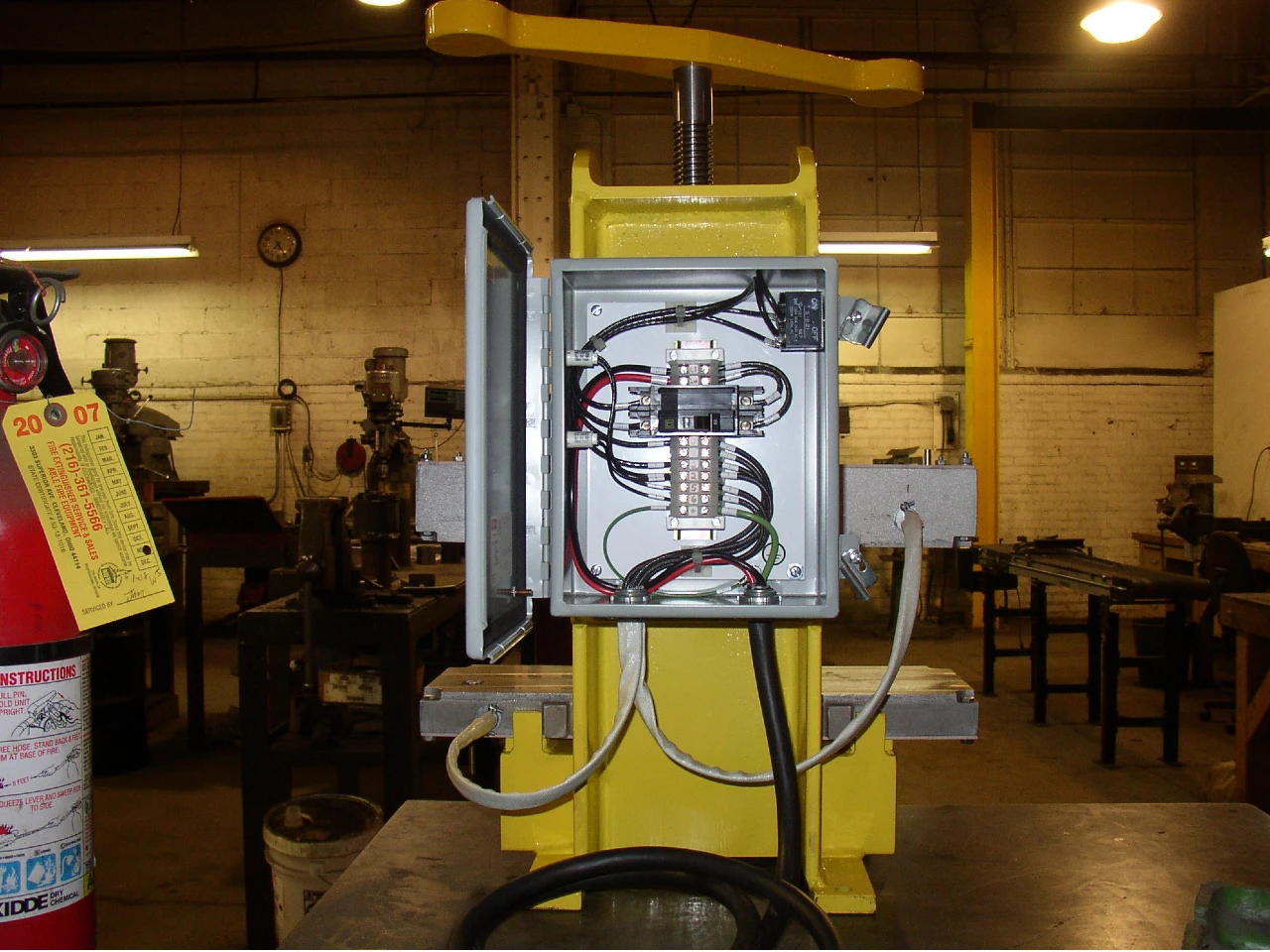

Repairs Cable in Underground Mines – When using flexible trailing cable in a mine, damage is a fact of life. Reducing downtime is a high priority. AMD ® ‘s cable vulcanizer offers sturdy construction that stands up to heavy use.
- Our lightweight aluminum frame model allows for easier transporting from point to point in and out of the mine.
- Our steel frame cable vulcanizer is favored inside many cable repair shops. With our steel frame unit weighing in at 152 lbs and our sturdy aluminum frame cable vulcanizer coming in at a mere 75 lbs, portability can be taken for granted.
The innovative and proven design of American Mine Door’s cable vulcanizer has been used in the mining industry for years, making jobs easier and safer.
- Steel Frame Cable Vulcanizer (less handle) 152 lbs.
- Aluminum Frame Cable Vulcanizer (less handle) 73 lbs.
Features of AMD Cable Vulcanizers
- Accepts most mine cable molds.
- Fast clamping action.
- Easy to load and unload.
- Sturdy construction will withstand the mining environment.
- Open front – no tie bars.
- Snap action thermostats.
- Indicating lights.

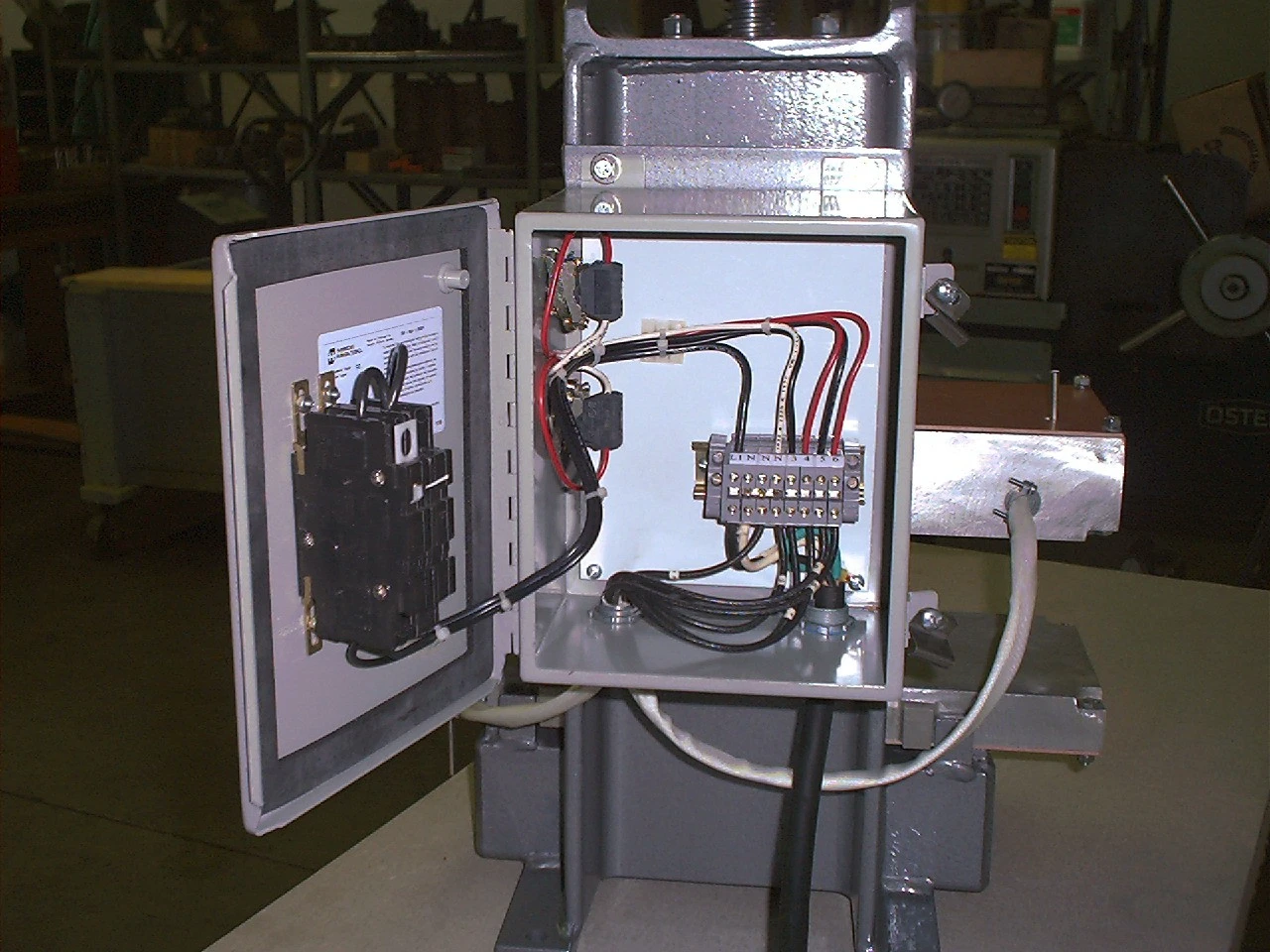

Components of Cable Vulcanizer
- Voltage: Most.
- Watts: 3000.
- Platens: 6-1/2 x 20.
- Bench Space: 16 x 20.
- Set Temperature: 300 degrees.
- Temperature Adjustable: 240 / 350 degrees.
- Acme Screw: 1-1/2 – 4 thread.
- Net Weight: 150lbs.
- Throat Opening Standard: 6 inches.
- Throat Opening High Back: 10 inches.
Cable Molds
We design and machine in-house two different types of molds that are used in our CV machines. Molds are machined from 6061 aluminum using CNC machining equipment. All CV molds are fitted with hardened pins and bushings for alignment of the top and bottom halves of the mold.
Splicing molds are used to join two cables together or repair damaged wires within a multi-conductor cable.
These molds open up to a larger diameter in the center of the mold to accommodate the extra space required for the splice.
Repair molds are used to repair damaged outer jacket only. Repair molds have the same diameter of the cable being repaired all the way through the mold.
